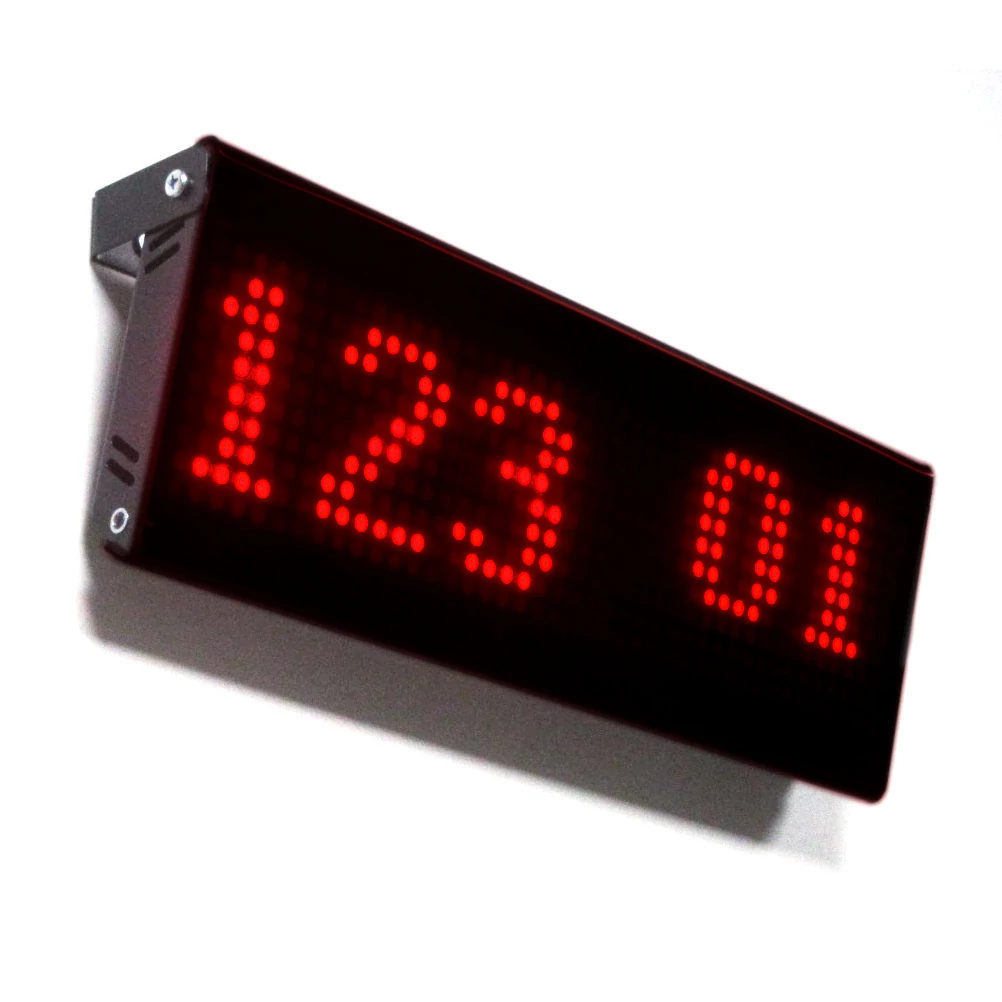

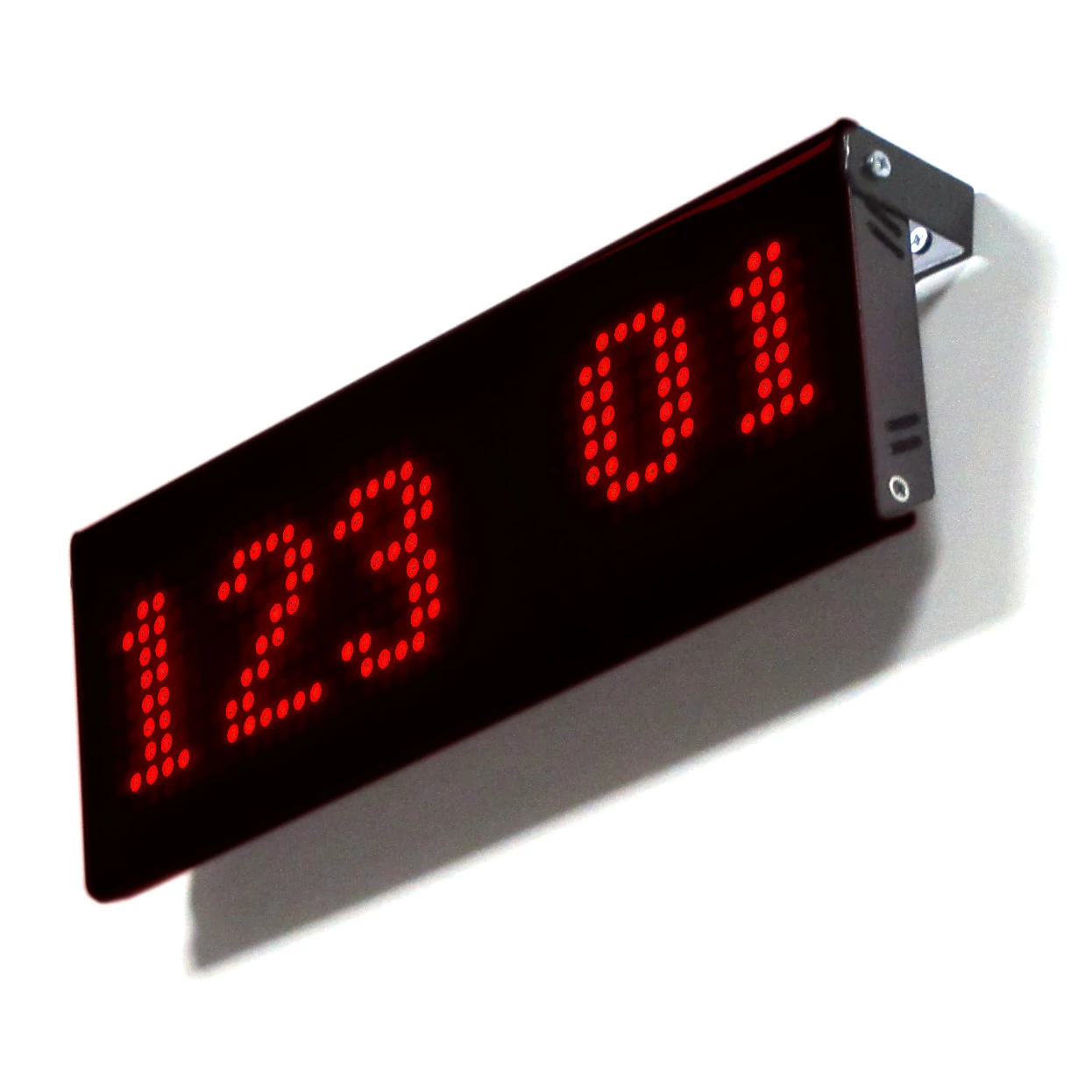

Matrix Led Counter Display

export pdf

Matrix counter displays is the most effective solution to shows active calling ticket number in counter of your queue management system. It can be installed on ceiling, wall or desktop with several installation brackets and contribute your corporate sense of aesthetics. Thanks to special led technology, you can use counter displays without any loss in the lumination of the LEDs for longer than 10 years.
  • Ultra-Red Matrix led display technology.
  • 42x10 pixel resolution.
  • Scrolling text options.
  • Customizable display view with supported Windows True Type fonts.
  • Desktop, ceiling or wall installation options

Technical Specifications

Hardware Properties

  • Network: RS485 Half Duplex
  • Technology: Matrix Led Display
  • Connection: Rj11
  • Operation voltage: 12V DC
  • Power consumption: 10W (Per Row)
  • Weight: 980g
  • Dimensions [mm] (WxDxH): 335x25x122

General Properties

  • Resolution: 48x10
  • LED technology: Ultra bright led matrix display
  • LED color options: Red
  • Chasis colors: Black
  • Call number rows: 1
  • Optional additional rows for previous calls: No

Functional Properties

  • Scrolling text: Yes
  • Central clock usage: No
  • Ticket number character size: 4
  • Ticket number prefix: No
  • Counter number character size: 2
  • Navigation arrows: No
  • Video display: No
  • Image/Slide show: No
  • Special text instead of ticket number: No
  • Special text instead of counter number: No
  • Previous call display: No
  • Next call number display: Yes
  • Melody option: Yes
  • Corporate melody option: Yes
  • Volume control: Yes

API-Support

  • Ticket call: Yes
  • Scrolling text: Yes
